01M Valve Body Removal and Reinstalation



Folks seem very intimidated, by the thought of removing and reinstalling their valve body.  I built this page to help.



First remove the skid plate pan and filter as shown in 01M filter change.

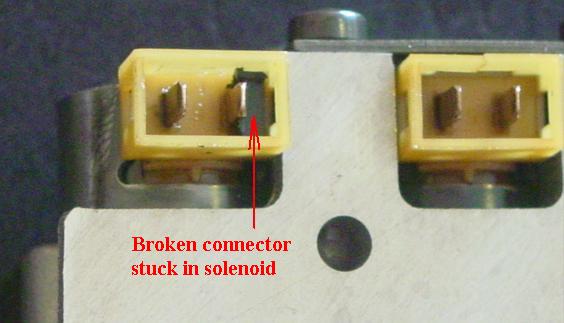

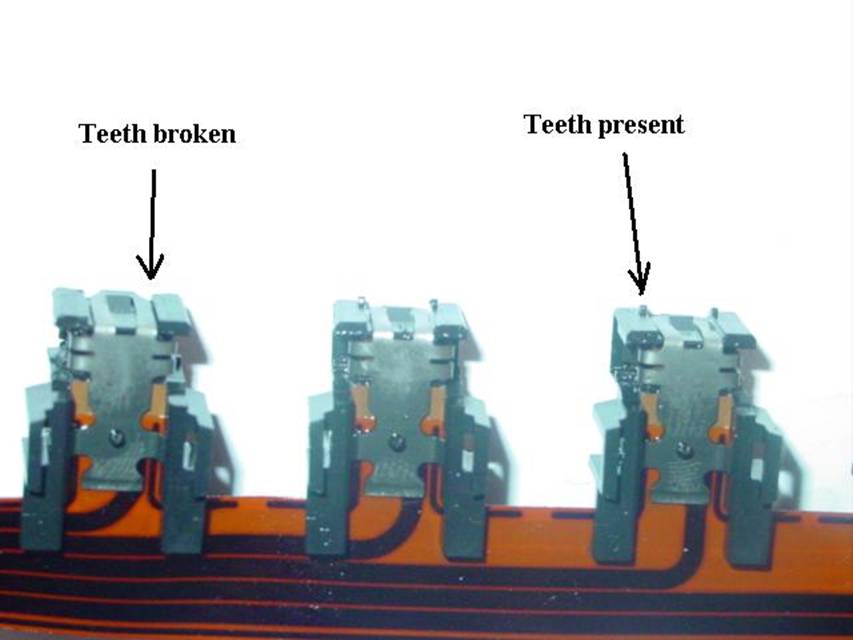

The most difficult part is unplugging the solenoid harness without breaking the ends off. If your ends break off you could end up with a solenoid code immediately or your connector could wiggle loose over time and give you a solenoid code later.  Here’s what the broken connectors look like.

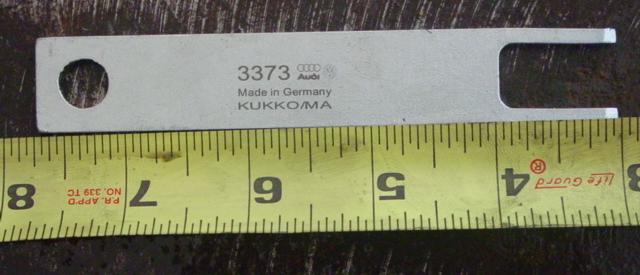

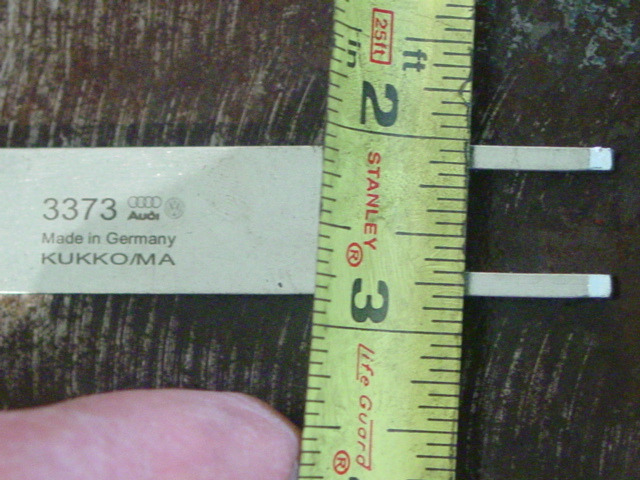

 Vw makes a special tool for this #3373.    Here’s a pic of the special tool.  I put a tape measure with it so you could make one if you wanted.  I have a plastic version available for $10.00 + shipping.

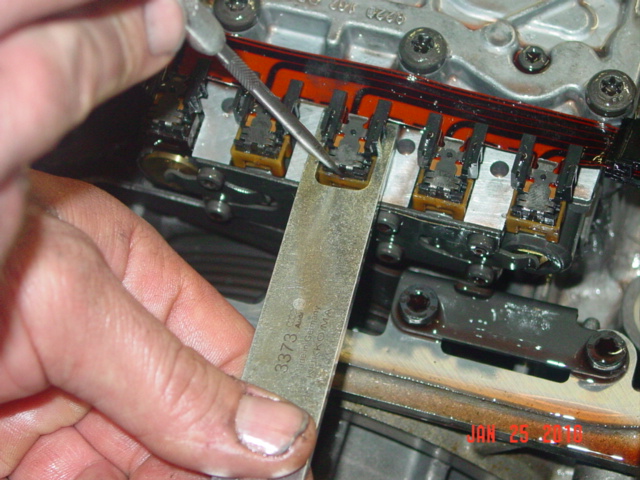

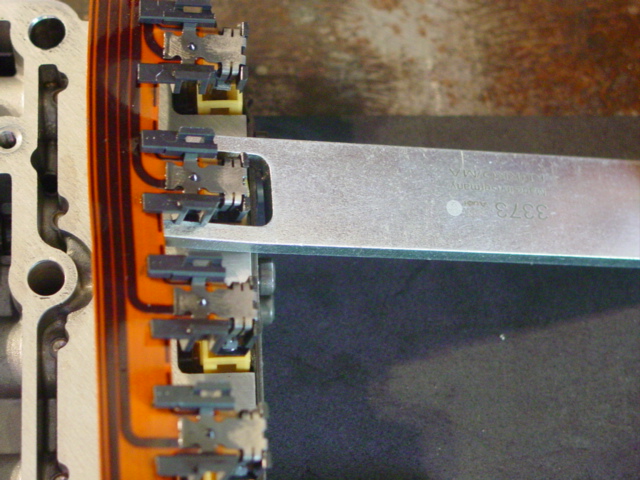

So if you’re pulling your valve body or changing a solenoid then carefully pry the solenoid with the special tool as in the pic. .

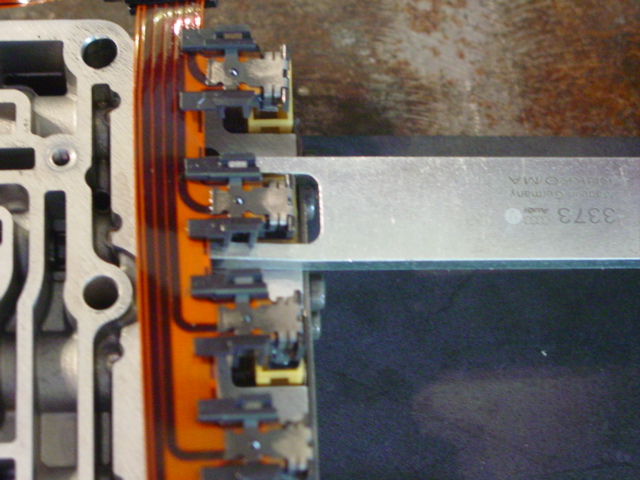

Notice how this cocks the connector in the solenoid.  This is what you want to a certain extent because it make the teeth move to the left to disengage the window that they lock in.



Be careful though wiggle gently.  And watch as your doing it.

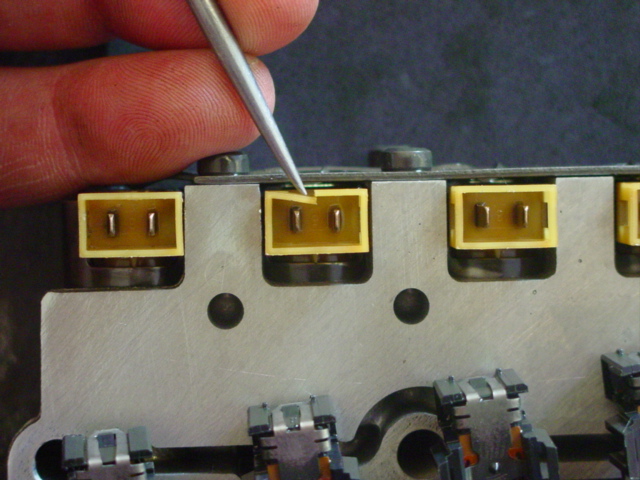

Sometimes when it’s stubborn you might have to pry in here with a very small pick.  This is a little counter productive though because it pulls the plastic away from the solenoid at the top but I think the bottom of it moves opposite and hinders the teeth from releasing.  Do this carefully.

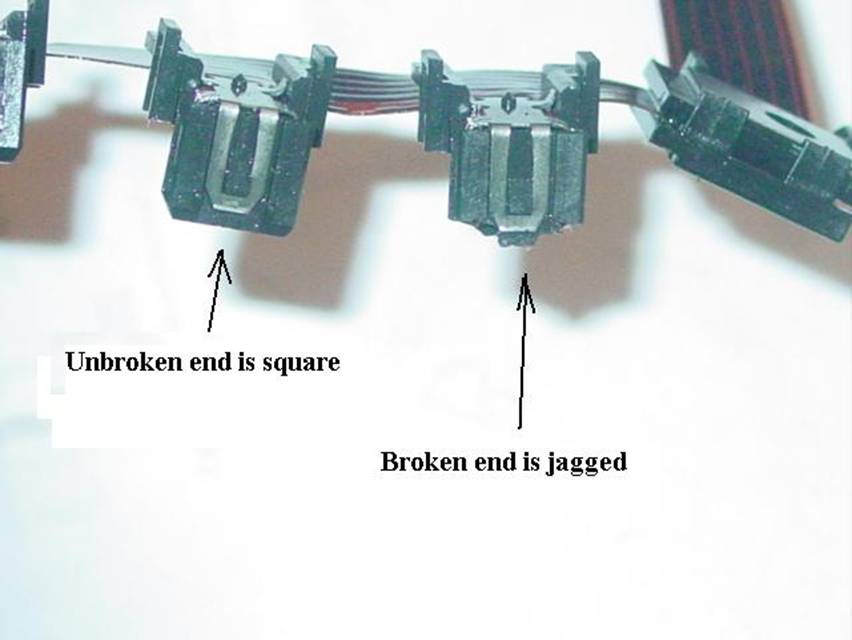

Here’s what happens if you get too aggressive trying to release teeth with a pick.  This solenoid is ok and reusable but if your break that piece out then you’ll need to replace the solenoid to keep the connector plugged in to it.

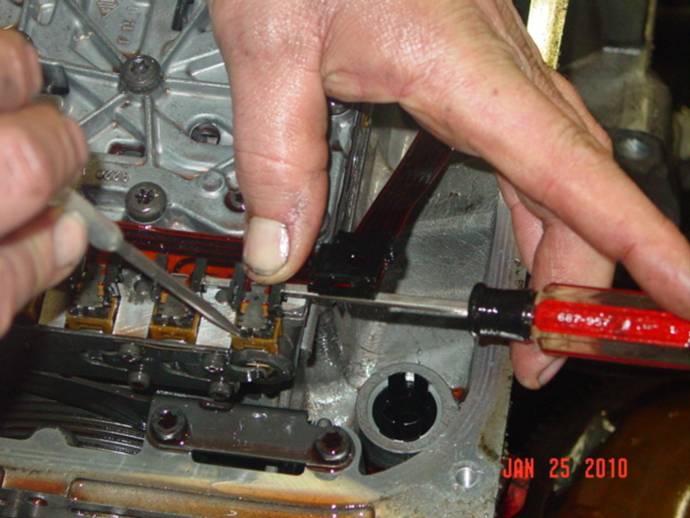

Here’s an alternate method you might try with a screwdriver if you don’t have the special tool.  It makes the same motion and I had good luck doing it this way back when.  Notice it cocks the connector the same way to pull the teeth out of the “window” that they latch into.

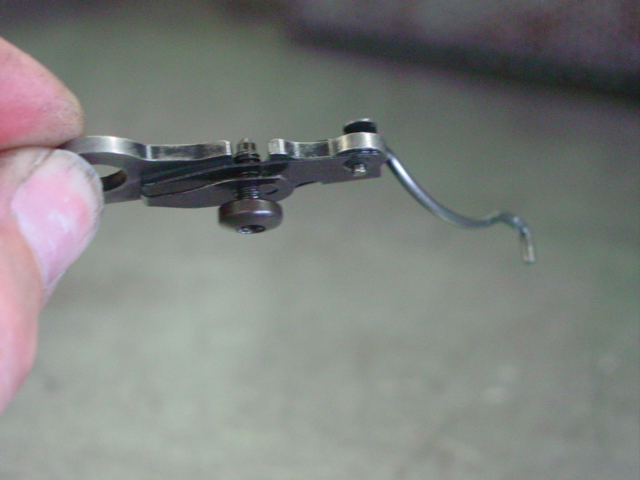

At this loosen the bolt that holds the manual valve linkage.   Do take it out of the threads, but do not take the bolt all the way out of the linkage.  If it falls apart it can be a little confusing on how it goes back together.



Just leave it like it is in the pic.  The manual valve will probably pull out with the link.  If so just set it aside till your ready to reinstall the manual valve linkage.







At this point pull the torx bolts out of the valve body.  There are two little T20’s and a bunch of large T30’s.  Just pull the T30’s out.  Don’t pull out the t20’s.  The t20’s hold the valve body together and if you separate them you might loose checkballs and springs.   Some fluid will run out when you remove the valve body.

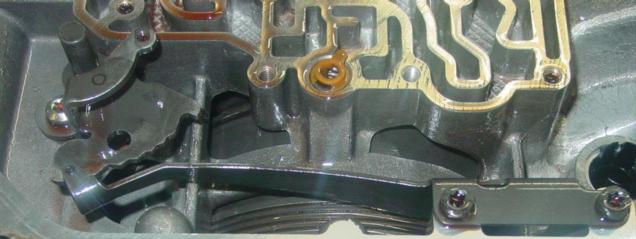

Up above the valve body there is a reverse feed pipe. I’ve never had one fall out on me but it is possible.  If it does fall out put it back.    Here is where it goes.





Enough for now.  I’ll finish reinstallation later.
